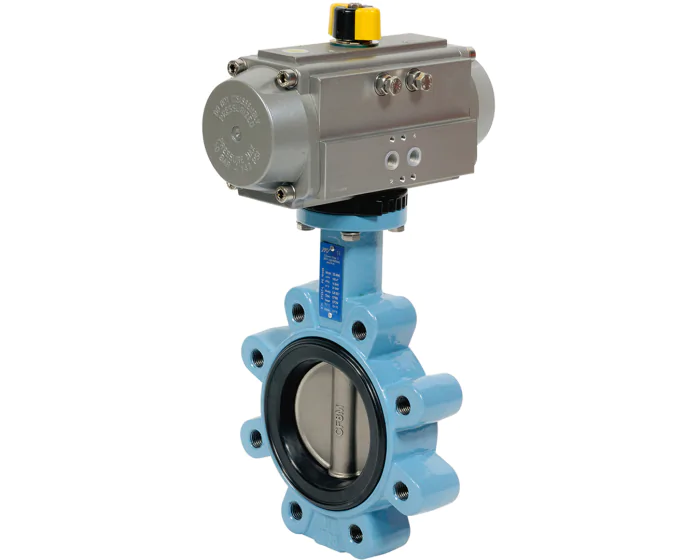

The 1160 butterfly valve consists of ductile iron or stainless steel disc body and EPDM seat. It is actuated with ALPHAIR pneumatic actuator. ACS approval. PS: 16 bar (up to DN150) - TS: -10 /+110°C. Mounting between flanges LUG PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261303017006R | S1001914 |
€241.13
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261303017107R | S1001915 |
€277.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 261304017006R | S1001916 |
€248.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 261304017107R | S1001917 |
€284.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261305017007R | S1001918 |
€265.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261305017108R | S1001919 |
€343.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 261306017007R | S1001920 |
€277.04
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 261306017108R | S1001921 |
€355.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 261307017008R | S1001922 |
€335.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 261307017109R | S1001923 |
€423.37
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 261308017008R | S1001924 |
€369.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 261308017110R | S1001925 |
€529.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 261309017009R | S1001926 |
€423.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Spring return | 261309017111R | S1001927 |
€675.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 261310017010R | S1001928 |
€687.63
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Spring return | 261310017112R | S1001929 |
€930.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Double acting DN250 - 10'' | 261311017011R | S1001930 |
€1,005.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Spring return DN250 - 10'' | 261311017113R | S1001931 |
€1,364.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Double acting DN300 - 12'' | 261312017012R | S1001932 |
€1,207.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Spring return DN300 - 12'' | 261312017115R | S1001933 |
€2,429.97
(excl. btw)
|
add to cart |
